Model Y | Brake Caliper Cover
Couldn't load pickup availability
- Features and Specifications:
- Color: Red.
- Material: High-temperature resistant.
- Design: Custom fit for Tesla models.
- Function: Aesthetic enhancement, protects calipers.
- Installation: Simple, no special tools required.

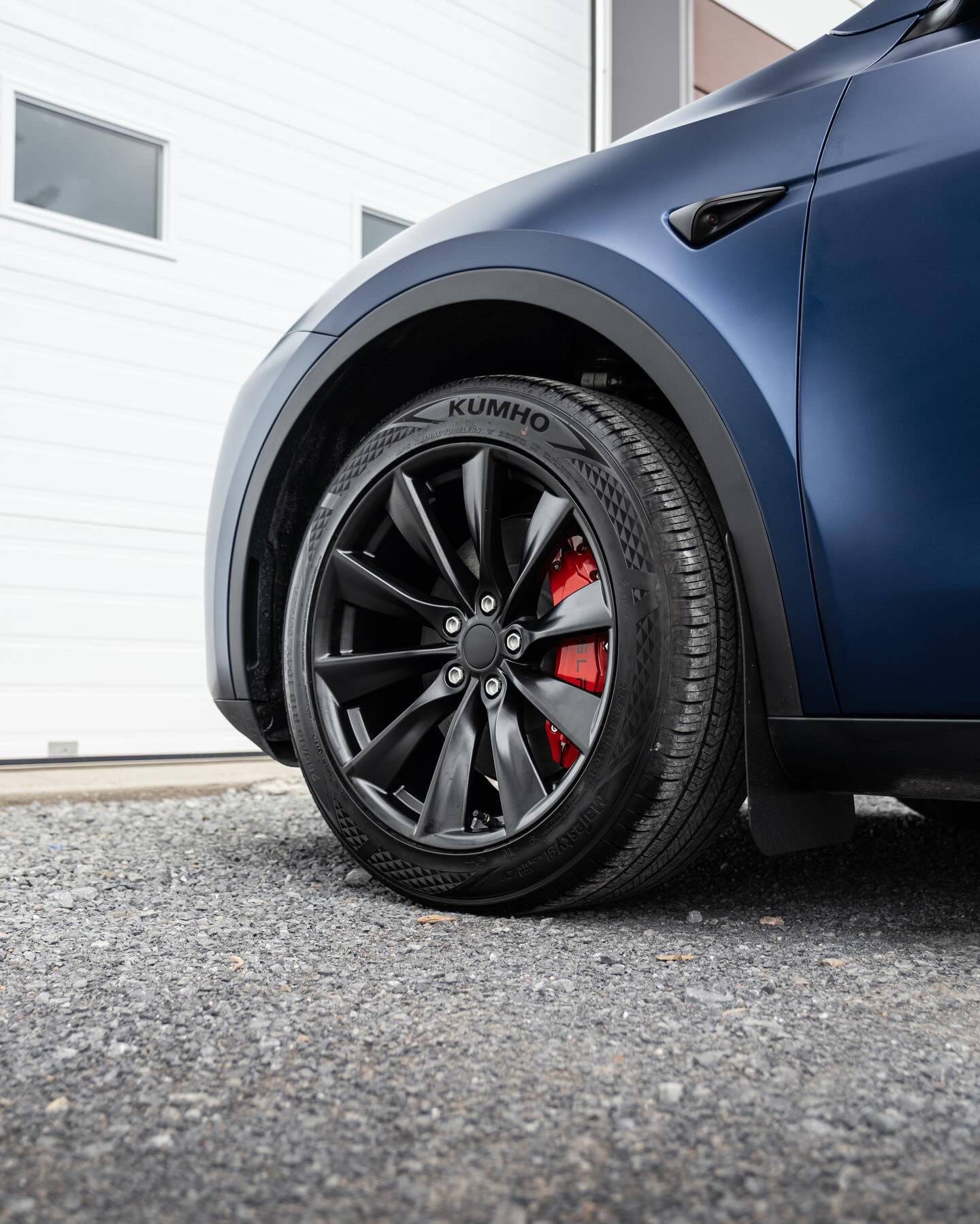

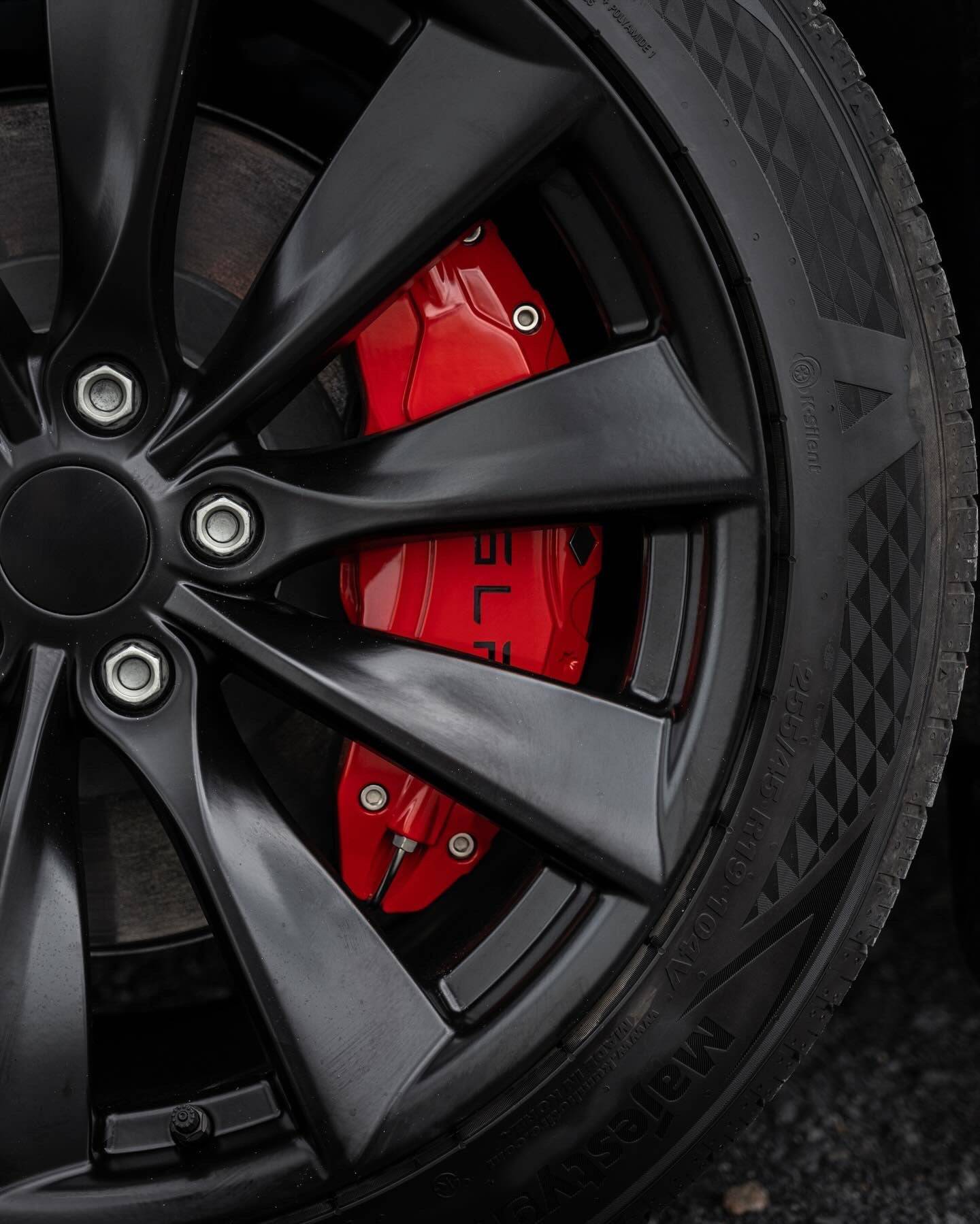

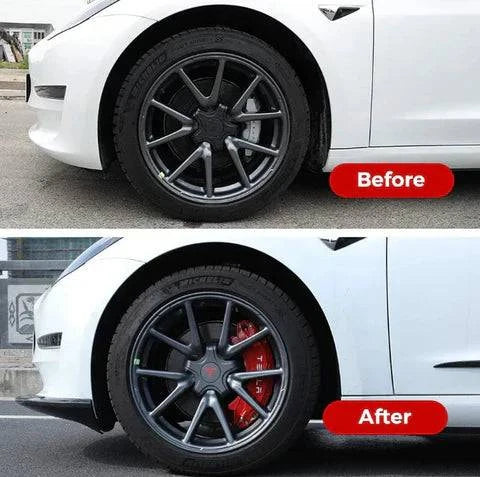

Once fitted, this cover transforms the appearance of your vehicle, adding a touch of sophistication and a distinct style. It elevates the luxury quotient of your car while also making it stand out from the crowd. Compared to other Model 3s, your vehicle will exude a more dynamic and sporty vibe. Crafted from high-grade aluminum alloy, this cover not only looks fantastic but also improves tire heat dissipation, blending elegance with performance enhancement.
Installation Guide for Tesla Model Y Brake Caliper Covers

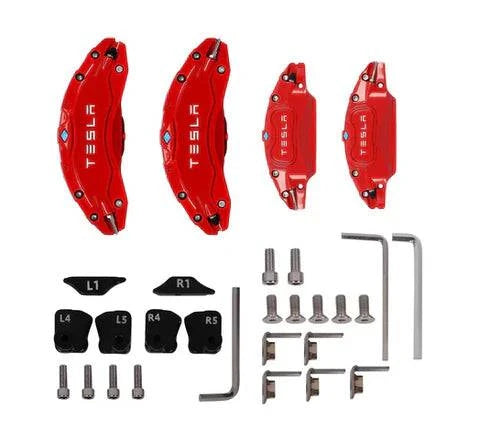

Step 1: Identifying the Caliper Covers
- Begin by sorting the caliper covers: two larger covers for the front wheels and two smaller ones for the rear.
- Ensure you correctly identify the front and rear caliper covers before proceeding.
Important Note
- The installation steps are identical for both the front and rear caliper covers.
Step 2: Positioning the Caliper Covers
- Position each caliper cover so that the rubber cap is on the top end and the tubing is on the lower end of the caliper.
Step 3: Locating the Installation Point
- Find the gap between the brake disc and the caliper bracket. This is where the cover will be installed.
Step 4: Installing the Fixed Buckle
- Hook the fixed buckle on the caliper cover onto the caliper bracket.
- Push the buckle towards the center until it aligns flush with the bracket sidewall.
- Ensure the caliper cover is evenly positioned on both sides and aligns with the center of the caliper.
Step 5: Securing the Adjustable Buckle
- Locate the gap between the caliper and the brake disc for the second buckle.
- Insert and push the adjustable buckle towards the center, aligning the bolt holes.
Step 6: Bolting the Buckle
- Thread the hexagon bolt through the buckle hole.
- Attach and fasten the provided nut onto the bolt.
Step 7: Tightening the Hardware
- Tighten the bolt and nut using the provided tools, ensuring a secure fit.
Step 8: Checking the Brake Disc Protective Cover
- Ensure the brake disc protective cover does not hinder the buckle installation.
- If necessary, use a flat-head screwdriver to adjust the cover temporarily and then restore it post-installation.
Step 9: Testing the Installation
- Reattach the tire, hand-tightening two lug nuts initially.
- Rotate the wheel to check for interference with the caliper cover; there should be no metal friction sounds.
- After confirming, install the remaining lug nuts.
- Lower the car from the jack and securely tighten all lug nuts.
- Perform a low-speed test drive to check for any rubbing or interference sounds. There should be no scraping noise.
- If everything is clear, the installation is complete.
Congratulations on successfully installing your Tesla Model Y Brake Caliper Covers!
